OEM readers

The Q-DS1000 read/write unit is a highly innovative access reader with a modular architecture and exceptionally high connectivity. Thanks to its versatile communication interfaces, the device can be used both as a classic access reader and as an intelligent gateway within modern access control systems.

The system combines RFID technology, NFC communication, QR code recognition, as well as wired and wireless network interfaces in a compact device. In addition to authenticating identity media, the reader also enables the secure integration of mobile identities and digital access solutions.

The core of the system is a powerful mainboard with an integrated 32-bit processor, multiple communication interfaces, and a hardware secure element for secure cryptographic operations and key management. An integrated motion sensor also enables reliable tamper and dismantling detection.

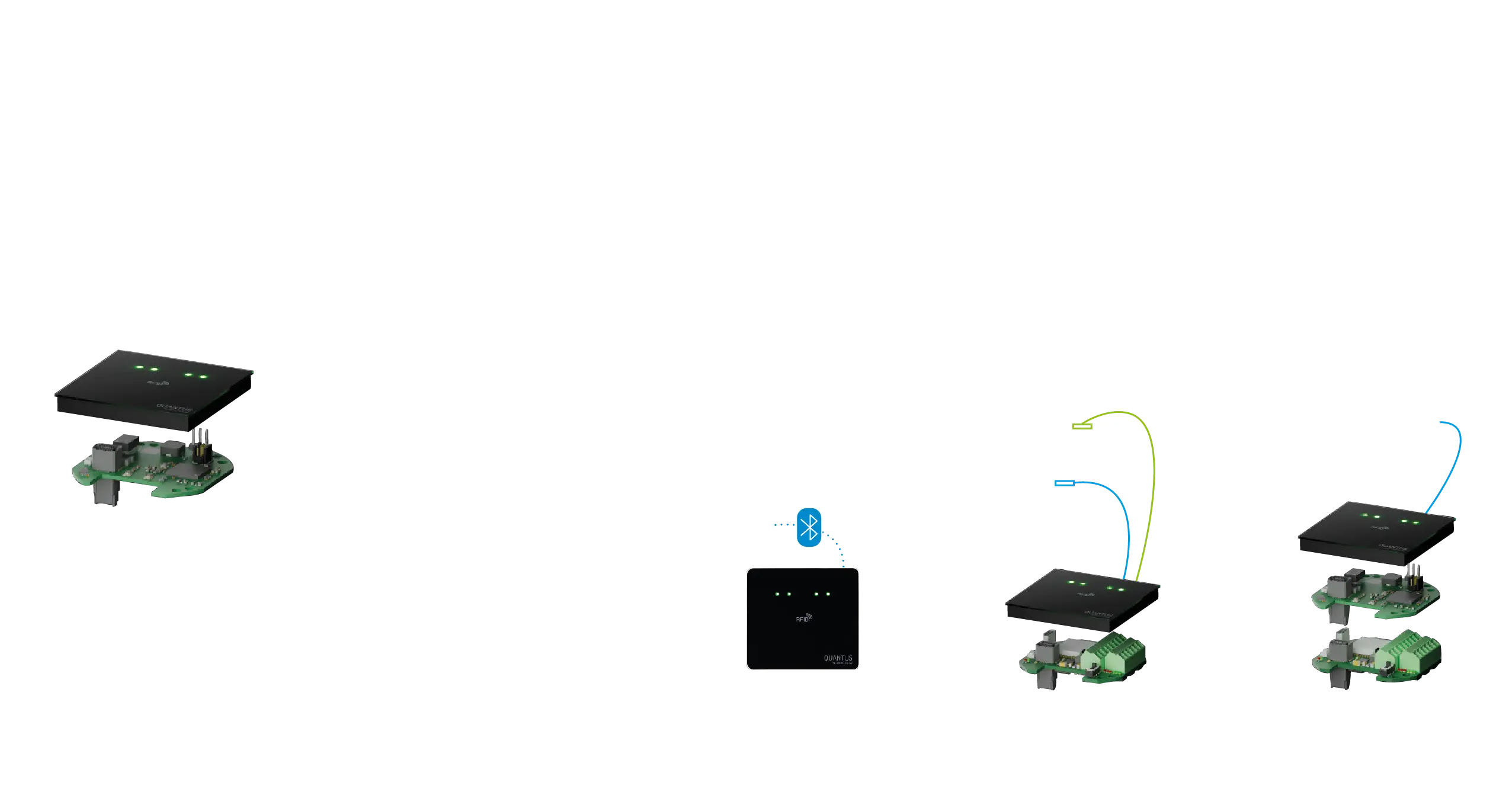

Thanks to its extensive communication options, the Q-DS1000 can also function as a gateway. In this architecture, the reader is connected to a door controller via RS485 or LAN and at the same time establishes a connection to additional readers or peripheral devices via wireless technologies such as BLE, Wi-Fi or LTE. This enables decentralised and scalable access structures without having to install additional gateways or controllers. The integrated RFID technology supports numerous modern transponder technologies and enables use in existing as well as new access infrastructures. Thanks to its compact design, the device is ideal for integration into common switch box ranges as well as intercom systems, for example in installation systems from Siedle®.

Optional expansion modules can be integrated, for example:

• Acoustic modules
• I/O modules
• LAN / PoE modules
• LTE communication modules

This allows the Q-DS1000 to be flexibly adapted to different installation environments and system architectures.



• Integrated acoustic signaler
• Hardware Secure Module for secure key management
• Integrated camera for QR code recognition or CCTV
• Integrated motion sensor for tamper detection
• Integrated Read/Write2 mode for tokens
• Integrated encoding mode
• Encrypted data transmission from the token to the door controller
• Suitable for all common switch box and intercom system ranges
• Suitable for surface-mounted and flush-mounted installations
• Capacitive keypad

Electrical data	Value
Nominal voltage	12 – 24 VDC
Current consumption	typ. 90 mA / max. 150 mA @ 12 VDC (tbd)
Operating temperature	-20°C to +60°C
Protection class	IP54

Interfaces
2 × RS485 interfaces Wi-Fi interface BLE interface USB-C interface 4 multicolour LEDs for user guidance 2 multicolour LEDs for commissioning / service 12 LEDs for keypad backlighting

Supported transponder technologies
MIFARE Classic® MIFARE® DESFire® EV3 LEGIC prime LEGIC advant NFC BLE for smartphone communication QR code authentication

Housing
Front panel	Glass
Material	ABS (Acrylonitrile Butadiene Styrene)
Colours	RAL 9003 “Signal white” RAL 9017 “Traffic black”

Communication protocols
OSDP phg_crypt MQTT further protocols on request

Security
Hardware Secure Element End-to-end encrypted data transmission Secure key management Support for modern RFID security mechanisms

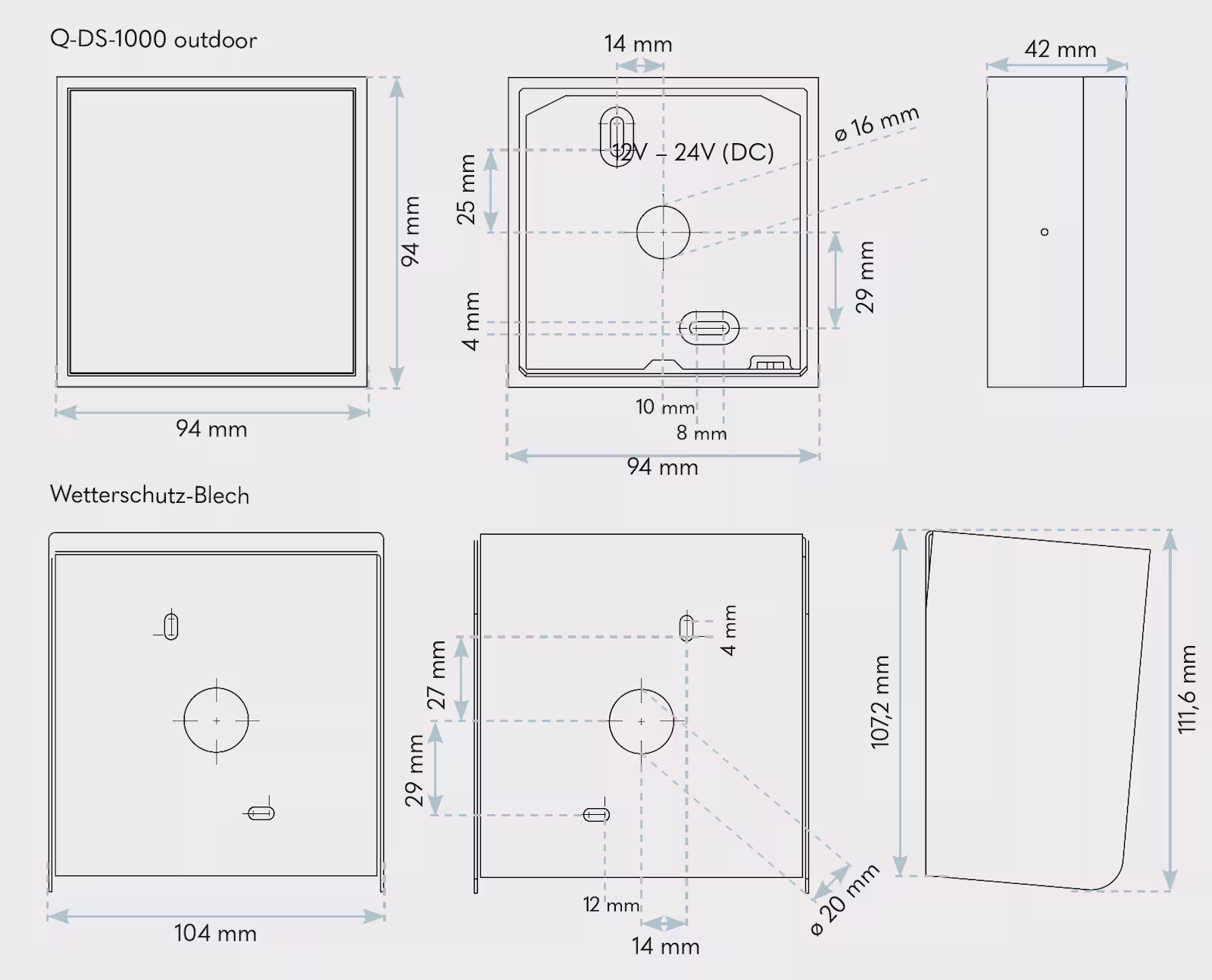

The Q-DS-1000 read/write unit is a highly innovative access reader with a modular architecture and exceptionally high connectivity. Thanks to its versatile communication interfaces, the device can be used both as a classic access reader and as an intelligent gateway within modern access control systems.

The system combines RFID technology, NFC communication, QR code recognition, as well as wired and wireless network interfaces in a compact device. In addition to authenticating identity media, the reader also enables the secure integration of mobile identities and digital access solutions.

The core of the system is a powerful mainboard with an integrated 32-bit processor, multiple communication interfaces, and a hardware secure element for secure cryptographic operations and key management. An integrated motion sensor also enables reliable tamper and dismantling detection.

Thanks to its extensive communication capabilities, the Q-DS-1000 can also function as a gateway. In this architecture, the reader is connected to a door controller via RS-485 or LAN and simultaneously connects to other readers or peripheral devices via wireless technologies such as BLE, WLAN, or LTE. This allows for the implementation of decentralized and scalable access structures without having to install additional gateways or controllers. The integrated RFID technology supports numerous modern transponder technologies and enables use in existing as well as new access infrastructures. Thanks to its compact design, the device is ideal for integration into common switch box programs and intercom systems, for example, in Siedle installation systems.

Optional expansion modules

This allows the Q-DS-1000 to be flexibly adapted to different installation environments and system architectures. The following modules can be optionally integrated:

Acoustic modules	I/O modules
LAN/PoE modules	LTE communication modules

Signal generator	Integrated acoustic signal generator
Security	Hardware Secure Module for secure key management
Camera	Integrated camera for QR code recognition or CCTV
Tamper protection	Integrated motion sensor for tamper detection
Token mode	Integrated read/write mode for tokens & integrated coding mode
Encryption	Encrypted data transmission from token to door controller
Compatibility	Suitable for all common switch box and intercom system programs
Mounting Type	Suitable for surface-mounted (AP) and flush-mounted (UP) installations
Operation	Capacitive keyboard

Electrical data

Electrical data	Value
Nominal voltage	12 – 24 VDC
Current consumption	typ. 90 mA / max. 150 mA @ 12 VDC (tbd)
Operating temperature	-20°C to +60°C
Protection Class	IP64 (IP65 with protective cover)

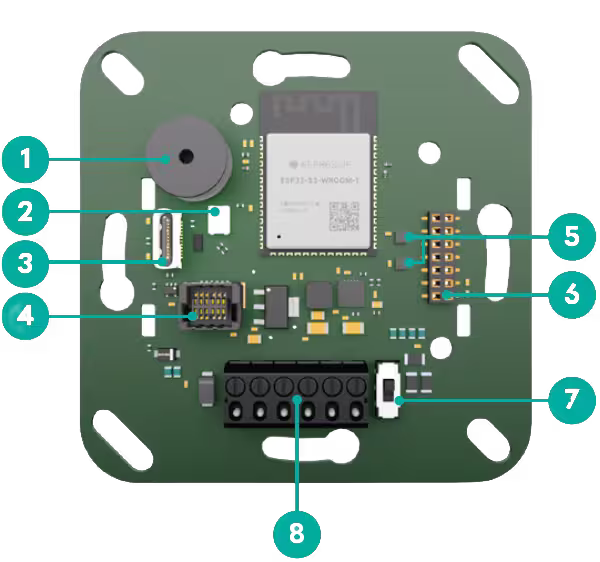

8. External connection assignment

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6
12V – 24V (DC)	GND	D+ (A)	D- (B)	×	×

Interfaces

2 × RS-485 interfaces

WLAN interface

BLE interface

USB-C interface

4 × multi-color LEDs for user guidance

2 × multi-color LEDs for commissioning/service

12 × LEDs for keyboard backlighting

Supported transponder technologies

MIFARE Classic®

MIFARE® DESFire® EV3

LEGIC prime

LEGIC advant

NFC

BLE for smartphone communication

QR code authentication

Housing

Front panel	Glass
Material	ASA (Acrylonitrile styrene acrylate)
Color	RAL 9003 “Signal White” / RAL 9017 “Traffic Black”

Communication protocols

OSDP

phg_crypt

MQTT

further protocols on request

Security

Hardware Secure Element

End-to-end encrypted data transmission

Secure key management

Support for modern RFID security mechanisms

Compliance

CE compliance

The Q-DS-1000 read/write unit is a highly innovative access reader with a modular architecture and exceptionally high connectivity. Thanks to its versatile communication interfaces, the device can be used both as a classic access reader and as an intelligent gateway within modern access control systems.

The system combines RFID technology, NFC communication, QR code recognition, as well as wired and wireless network interfaces in a compact device. In addition to authenticating identity media, the reader also enables the secure integration of mobile identities and digital access solutions.

The core of the system is a powerful mainboard with an integrated 32-bit processor, multiple communication interfaces, and a hardware secure element for secure cryptographic operations and key management. An integrated motion sensor also enables reliable tamper and dismantling detection.

Thanks to its extensive communication capabilities, the Q-DS-1000 can also function as a gateway. In this architecture, the reader is connected to a door controller via RS-485 or LAN and simultaneously connects to other readers or peripheral devices via wireless technologies such as BLE, WLAN, or LTE. This allows for the implementation of decentralized and scalable access structures without having to install additional gateways or controllers. The integrated RFID technology supports numerous modern transponder technologies and enables use in existing as well as new access infrastructures. Thanks to its compact design, the device is ideal for integration into common switch box programs and intercom systems, for example, in Siedle installation systems.

Optional expansion modules

This allows the Q-DS-1000 to be flexibly adapted to different installation environments and system architectures. The following modules can be optionally integrated:

Acoustic modules	I/O modules
LAN/PoE modules	LTE communication modules

Signal generator	Integrated acoustic signal generator
Security	Hardware Secure Module for secure key management
Camera	Integrated camera for QR code recognition or CCTV
Tamper protection	Integrated motion sensor for tamper detection
Token mode	Integrated read/write mode for tokens & integrated coding mode
Encryption	Encrypted data transmission from token to door controller
Compatibility	Suitable for all common switch box and intercom system programs
Mounting Type	Suitable for surface-mounted (AP) and flush-mounted (UP) installations
Operation	Capacitive keyboard

Available Models & Options

Available Models	Color	Item No.
Q-DS-1000 indoor flush-mounted	white	Q1-DSI-086×086-AA-IW-S-A-A
Q-DS-1000 indoor surface-mounted medium	white	Q1-DSI-086×086-AA-IW-M-A-A
Q-DS-1000 indoor surface-mounted long	white	Q1-DSI-086×086-AA-IW-L-A-A
Q-DS-1000 indoor flush-mounted	black	Q1-DSI-086×086-AB-IW-S-A-A
Q-DS-1000 indoor surface-mounted medium	black	Q1-DSI-086×086-AB-IW-M-A-A
Q-DS-1000 indoor surface-mounted long	black	Q1-DSI-086×086-AB-IW-L-A-A

Options	Color	Item No.
Keypad Q-DS-1000 indoor flush-mounted	white	Q1-DSI-086×086-AC-IW-S-E-A
Camera Q-DS-1000 indoor flush-mounted	white	Q1-DSI-086×086-AE-IW-S-A-B
BLE Coupling Lock Q-DS-1000 indoor flush-mounted	white	Q1-DSI-086×086-AA-IW-S-A-A-B
BLE Coupling ABUS Component Q-DS-1000 indoor flush-mounted	white	Q1-DSI-086×086-AA-IW-S-A-A-C
Gateway Function Q-DS-1000 indoor flush-mounted	white	Q1-DSI-086×086-AA-IW-S-A-A-A
Further options on request

Electrical data

Electrical data	Value
Nominal voltage	12 – 24 VDC
Current consumption	typ. 90 mA / max. 150 mA @ 12 VDC (tbd)
Operating temperature	-20°C to +60°C
Protection class	IP54

Interfaces

2 × RS-485 interfaces

WLAN interface

BLE interface

USB-C interface

4 × multi-color LEDs for user guidance

2 × multi-color LEDs for commissioning/service

12 × LEDs for keyboard backlighting

Supported transponder technologies

MIFARE Classic®

MIFARE® DESFire® EV3

LEGIC prime

LEGIC advant

NFC

BLE for smartphone communication

QR code authentication

Housing

Front panel	Glass
Material	ABS (Acrylonitrile Butadiene Styrene)
Color	RAL 9003 “Signal White” / RAL 9017 “Traffic Black”

Communication protocols

OSDP

phg_crypt

MQTT

further protocols on request

Security

Hardware Secure Element

End-to-end encrypted data transmission

Secure key management

Support for modern RFID security mechanisms

Compliance

CE compliance

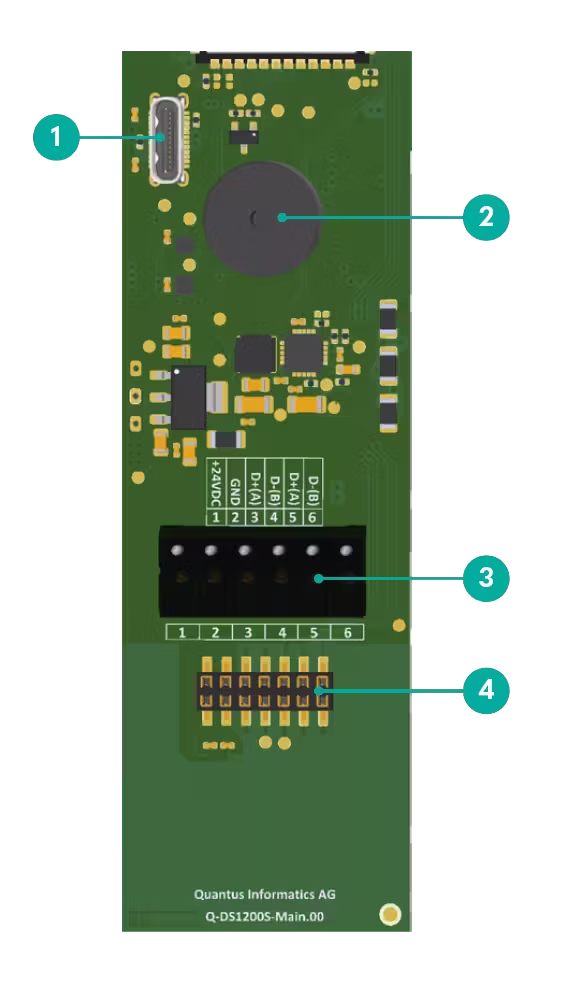

The Q-DS-1200 read/write unit is a highly innovative access reader with a modular architecture and exceptionally high connectivity, e.g., for installation on door frames. Thanks to its versatile communication interfaces, the device can be used both as a classic access reader and as an intelligent gateway within modern access control systems.

The system combines RFID technology, NFC communication, QR code recognition, as well as wired and wireless network interfaces in a compact device. In addition to authenticating identity media, the reader also enables the secure integration of mobile identities and digital access solutions.

The core of the system is a powerful mainboard with an integrated 32-bit processor, multiple communication interfaces, and a hardware secure element for secure cryptographic operations and key management. An integrated motion sensor also enables reliable tamper and dismantling detection.

Thanks to its extensive communication capabilities, the Q-DS-1200 can also function as a gateway. In this architecture, the reader is connected to a door controller via RS-485 or LAN and simultaneously establishes a connection to other readers or peripheral devices via wireless technologies such as BLE, WLAN, or LTE. This allows for decentralized and scalable access structures to be realized without having to install additional gateways or controllers. The integrated RFID technology supports numerous modern transponder technologies and enables use in existing as well as new access infrastructures. Thanks to its slim design, the device is ideal for installation in confined spaces.

Optional expansion modules

This allows the Q-DS-1200 to be flexibly adapted to different installation environments and system architectures, especially for door frame mounting. The following modules can be optionally connected:

Acoustic modules	I/O modules
LAN/PoE modules	LTE communication modules

Signal generator	Integrated acoustic signal generator
Security	Hardware Secure Module for secure key management
Camera	Integrated camera for QR code recognition or CCTV
Tamper protection	Integrated motion sensor for tamper detection
Token mode	Integrated read/write mode for tokens & integrated coding mode
Encryption	Encrypted data transmission from token to door controller
Mounting Type	Suitable for surface-mounted (AP) and flush-mounted (UP) installations
Operation	Capacitive keyboard (optional)

Electrical data

Electrical data	Value
Nominal voltage	12 – 24 VDC
Current consumption	typ. 90 mA / max. 150 mA @ 12 VDC (tbd)
Operating temperature	-20°C to +60°C
Protection class	IP54

Interfaces

2 × RS-485 interfaces

WLAN interface

BLE interface

USB-C interface

4 × multi-color LEDs for user guidance

2 × multi-color LEDs for commissioning/service

12 × LEDs for keyboard backlighting

Supported transponder technologies

MIFARE Classic®

MIFARE® DESFire® EV3

LEGIC prime

LEGIC advant

NFC

BLE for smartphone communication

QR code authentication

Housing

Front panel	Glass
Material	ABS (Acrylonitrile Butadiene Styrene)
Color	RAL 9003 “Signal White” / RAL 9017 “Traffic Black”

Communication protocols

OSDP

phg_crypt

MQTT

further protocols on request

Security

Hardware Secure Element

End-to-end encrypted data transmission

Secure key management

Support for modern RFID security mechanisms

Compliance

CE compliance

The Q-DS-2000 ST read/write/screen/touch unit is a highly innovative access reader with a modular architecture, exceptionally high connectivity, and powerful electronics. Thanks to its versatile communication interfaces, the device can be used as a classic access reader with extensive user guidance as well as an AI-supported control unit. In addition to the 32-bit microprocessor, the device features a second computer core with a RISC 5 AI 400 MHz processor. This allows applications such as facial recognition and QR code reading, e.g., for visitor tickets etc., to be executed directly on the unit.

The system combines RFID technology, NFC communication, QR code recognition, biometrics, and wired and wireless network interfaces in one compact device. In addition to authenticating identity media, the device also enables the secure integration of mobile identities and digital access solutions.

The heart of the system consists of two powerful 32-bit processors, multiple communication interfaces, and a Hardware Secure Element for secure cryptographic operations and key management. An integrated motion sensor additionally enables reliable tamper and removal detection.

Due to its extensive communication capabilities, the Q-DS-2000 can also function as a gateway. In this architecture, the reader is connected to a door controller via RS-485 or LAN and simultaneously establishes a connection to other readers or peripheral devices via wireless technologies such as BLE, WLAN, or LTE. This allows for the implementation of decentralized and scalable access structures without the need to install additional gateways or controllers. The integrated RFID technology supports numerous modern transponder technologies and enables use in both existing and new access infrastructures.

Optional expansion modules

Optional expansion modules can be integrated, such as:

Acoustic modules	I/O modules
LAN/PoE modules	LTE communication modules

Signal generator	Integrated acoustic signal generator
Security	Hardware Secure Module for secure key management
Camera	Integrated camera for QR code recognition or CCTV
Tamper protection	Integrated motion sensor for tamper detection
Token mode	Integrated read/write mode for tokens & integrated coding mode
Encryption	Encrypted data transmission from token to door controller
Display	3.5-inch display (640 x 480 RGB) with touch, max. 1425 cd/m²

Electrical data

Electrical data	Value
Nominal voltage	12 – 24 VDC
Current consumption	typ. 150 mA / max. 250 mA @ 12 VDC (tbd)
Operating temperature	-20°C to +60°C
Protection class	IP54

Interfaces

2 × RS-485 interfaces

2 × WLAN interface

BLE interface

2 × USB-C interfaces

Supported transponder technologies

MIFARE Classic®

MIFARE® DESFire® EV3

LEGIC prime

LEGIC advant

NFC

BLE for smartphone communication

QR code authentication

Housing

Front panel	Glass
Material	ABS (Acrylonitrile Butadiene Styrene)
Color	RAL 9003 “Signal White” / RAL 9017 “Traffic Black”

Communication protocols

OSDP

phg_crypt

MQTT

Other protocols on request

Compliance

CE compliance
